316 Stainless Steel Half Height Turnstile with Hydraulic Buffer and 25 to 30 Person Per Minute Flow Rate

  • 1
  • 2

Brand Name : Sinomatic

Model Number : SN-HH01

Certification : CE

Place of Origin : Shenzhen, China

MOQ : Sample order accepted

Price : Negotiable

Payment Terms : T/T,Western union,Visa,MasterCard,PayPal,Stripe,PayPal_BNPL,Apple pay,Google pay,Pix,OXXO,Billie,Online Transfer etc. Alipay

Supply Ability : 1000 pcs/month

Delivery Time : 7~10 days

Packaging Details : Crate

Turnstile Type : Half height turnstile

Flow rate : 25 to 30 person per minute

Direction : Single or bi-direction

Material of housing : 304 or 316 stainless steel

OEM/ODM : supported

Warranty : 1 year

Housing height : 1000mm

Contact Now

316 Stainless Steel Speedgate Turnstile Half Height Revolving Door With Railing
Access Control System Overview
This 316 stainless steel automatic half height revolving door with railing is designed to manage access control and passenger flow. It is widely used in gymnasiums, tourist attractions, business buildings, and other supervised areas. The system can integrate with various control devices including card readers and ticket dispensers to meet different security requirements.
Applications
Administrative & Industrial Facilities: Entrance foyers, company premises outdoors, staff-only areas such as laboratories
Sports & Leisure Facilities: Swimming pools, spas, gyms, stadiums, theme parks, and concert halls
Key Features
  • Constructed with durable 304 or 316 stainless steel cabinet
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Automatic positioning: rotates to next idle position if arm moves beyond halfway, returns to current position if moved less than halfway
  • Adjustable tensioner controls rotation force for smooth operation suitable for all users including elderly and children
  • Configurable for bi-directional or uni-directional operation with key-locked housing for security
  • Innovative mounting surface ensures simple and convenient installation
  • Compatible with various access control devices: IC/ID card readers, barcode scanners, fingerprint systems (access controller required)
  • Automatic reset function cancels user authority if passage isn't completed within preset time (default 5 seconds)
  • Equipped with automatic regulated hydraulic buffer device for quiet, impact-free operation
Technical Specifications
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Power Consumption 40W
Access Device Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor No motor
Maximum Flow Rate 30 persons per minute
Arm Length 400mm to 500mm
Working Temperature -20°C to 60°C

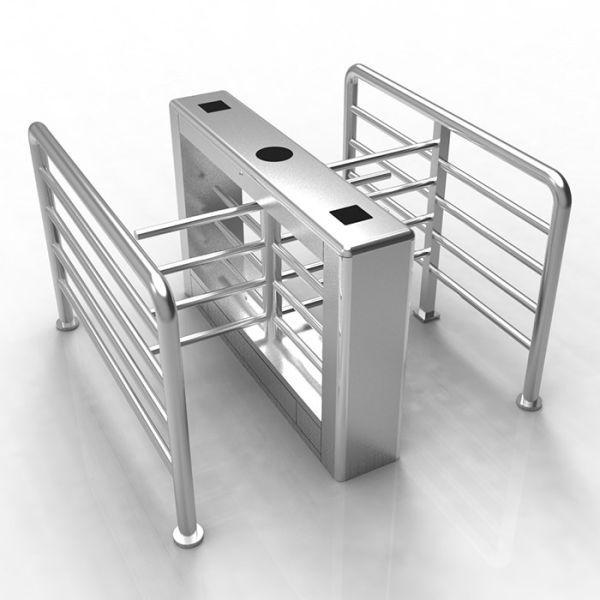

Product Image
316 Stainless Steel Half Height Turnstile with Hydraulic Buffer and 25 to 30 Person Per Minute Flow Rate
Why Choose Our Products
  1. OEM/ODM experience in access control turnstiles and barriers
  2. Prompt delivery with standard models kept in stock
  3. OEM/ODM orders accepted to meet specific client requirements
  4. Trial orders available for testing before bulk purchasing
  5. Comprehensive online technical support
  6. Multiple transportation options: sea shipment, air cargo, or express delivery
  7. Factory visits welcome on working days
