5.5KW A3 Steel SUS304 Hydraulic Road Blocker for High Security Traffic Control

  • 1
  • 2
  • 3

Brand Name : SINOMATIC

Model Number : SN-HRB02

Certification : CE/ ISO

Place of Origin : Shenzhen, China.

MOQ : Sample order accepted

Price : negotiable

Payment Terms : T/T,Western Union,,L/C,D/A,D/P

Supply Ability : 100pcs per month

Delivery Time : 5-7 working days after payment received

Packaging Details : Carton/Plywood box/Pallet

Product name : Traffic Road Blocker

Material : Mild steel

Finish features : Professional Welding Process

Surface treatment : Powder coating

Control Voltage : 24V

Rising time : 1-3s (Adjustable)

Contact Now

Terrorist Proof 5.5KW A3 Steel SUS304 Hydraulic Road Blocker
High-Security Hydraulic Road Barrier
Professional-grade hydraulic road blocker constructed from 304 stainless steel with high machining precision, designed for maximum security applications.
Technical Specifications
Basic Information & Material
Rising time 1-3s (Adjustable)
Dropping time 1-3s (Adjustable)
Dimension - Length 3-6m (On request)
Dimension - Width 1000mm
Height underground 760mm
Barrier height 500mm
Spikes φ30mm*90mm (Optional)
Panel/Housing/Spikes A3 Steel
Panel thickness 16/20/25mm
Surface color (Customizable) Red/Green/Yellow/Black
Drainage system Yes
Anti-rust treatment 2 layers spray paint
Reflective tape White/Black, Yellow/Black
LED warning light RGB, various dynamic
Actuator System
Hydraulic actuator Electric & Manual pump integrated
Power supply 380VAC
Power consumption 3.75KW~5.5KW
Shock-reducing Yes
Industrial hydraulic tank 30L~60L
Hydraulic hose Conical sealing, high pressure
Ambient temperature -25℃~55℃
Bearing capacity 0-100t
Control Center
Type PLC (With display)
Housing Spray paint (Outdoor use)
Self-testing program Yes
Trial period setting Yes
Warning light Auto ON/OFF Yes
Emergency rising/dropping Yes (With III level of control priority)
Manually rising/dropping Yes (Rising by pedal; Dropping by release valve)
Remote control distance 100m
Wire switch Yes

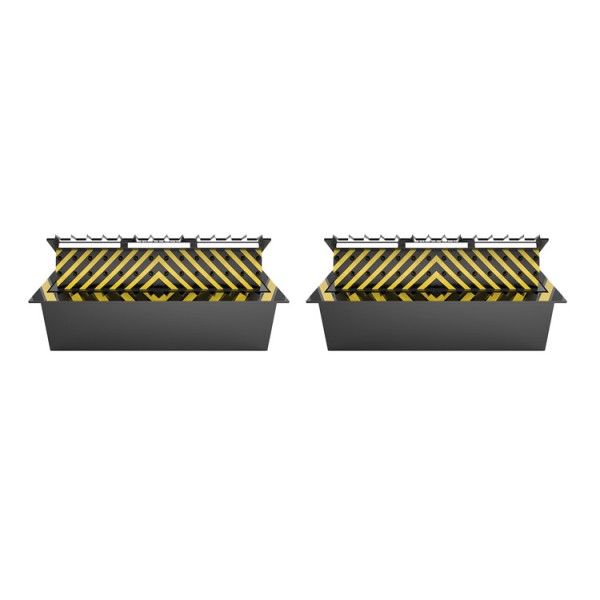

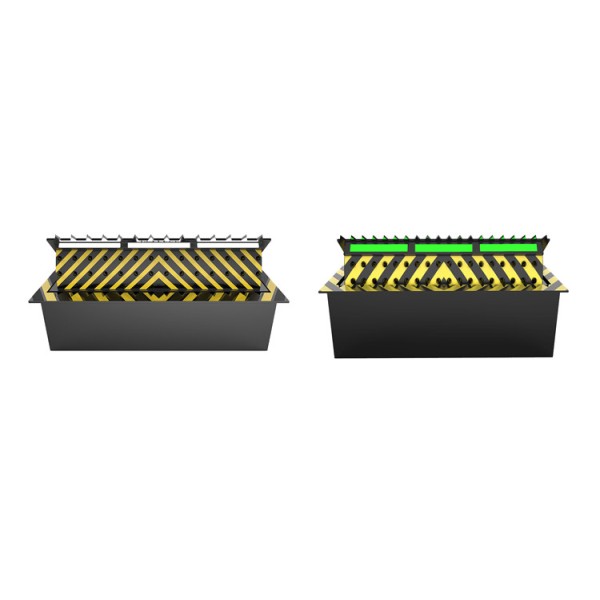

Product Images
5.5KW A3 Steel SUS304 Hydraulic Road Blocker for High Security Traffic Control 5.5KW A3 Steel SUS304 Hydraulic Road Blocker for High Security Traffic Control
Product Overview
SINOMATIC road blocker is engineered for high-level security applications. The housing and blocking element feature full core steel profile construction capable of absorbing static impact loads up to 5000kN.
The blocking element includes an integrated anti-deflection device and operates electro-hydraulically with an appropriately sized electric motor (380V, 50 Hz, 3-phase current). The electro-hydraulic drive unit and control system are housed in a lockable steel cabinet designed for outdoor installation, with maximum distance between road block and metal cabinet of 20 meters.
Operation options include remote controller, push button, card reader, and integration with existing access control systems. Compatible with SINOMATIC bollard and boom barrier systems for flexible security solutions.
Application Areas
Designed for high-security environments including:
  • Embassies and diplomatic compounds
  • bases and installations
  • Power stations and critical infrastructure
  • Prisons and correctional facilities
  • Other sensitive areas requiring maximum security protection

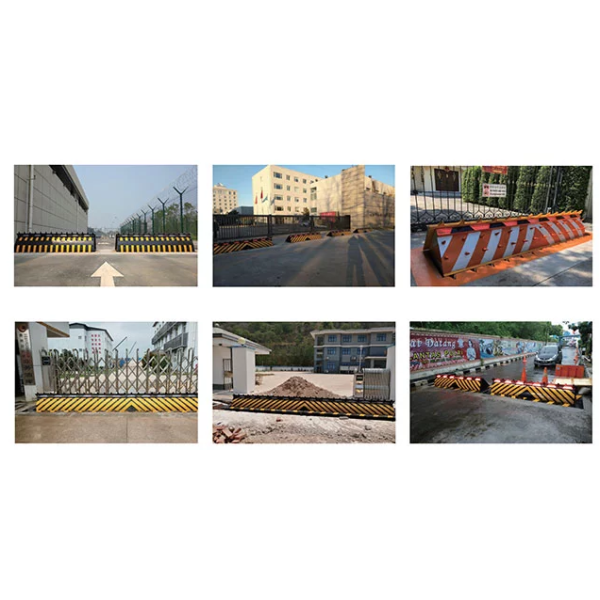

Case Reference
5.5KW A3 Steel SUS304 Hydraulic Road Blocker for High Security Traffic Control
